LS Oil Cooler Adapter -10AN ORB

LS Oil Cooler Line Adapter

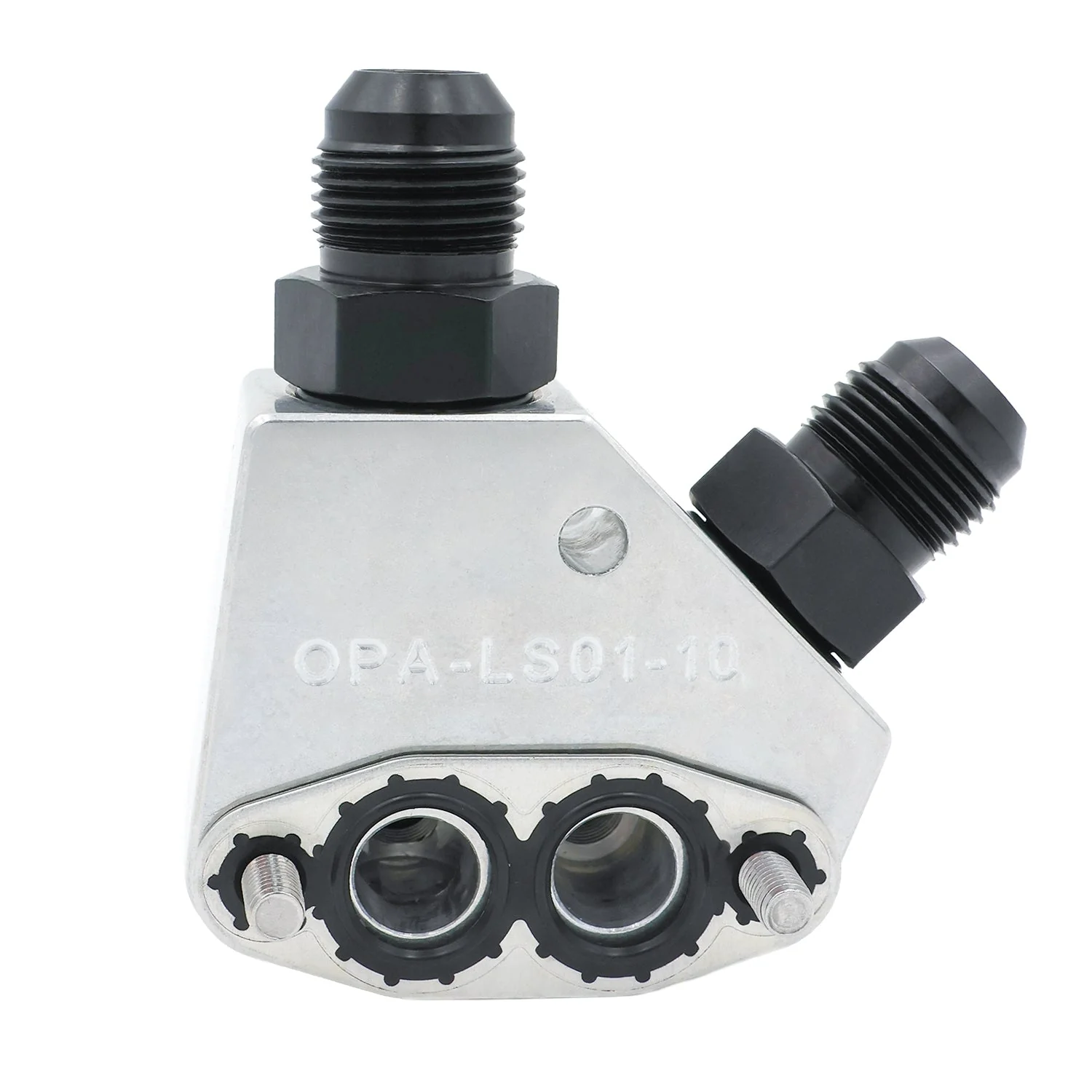

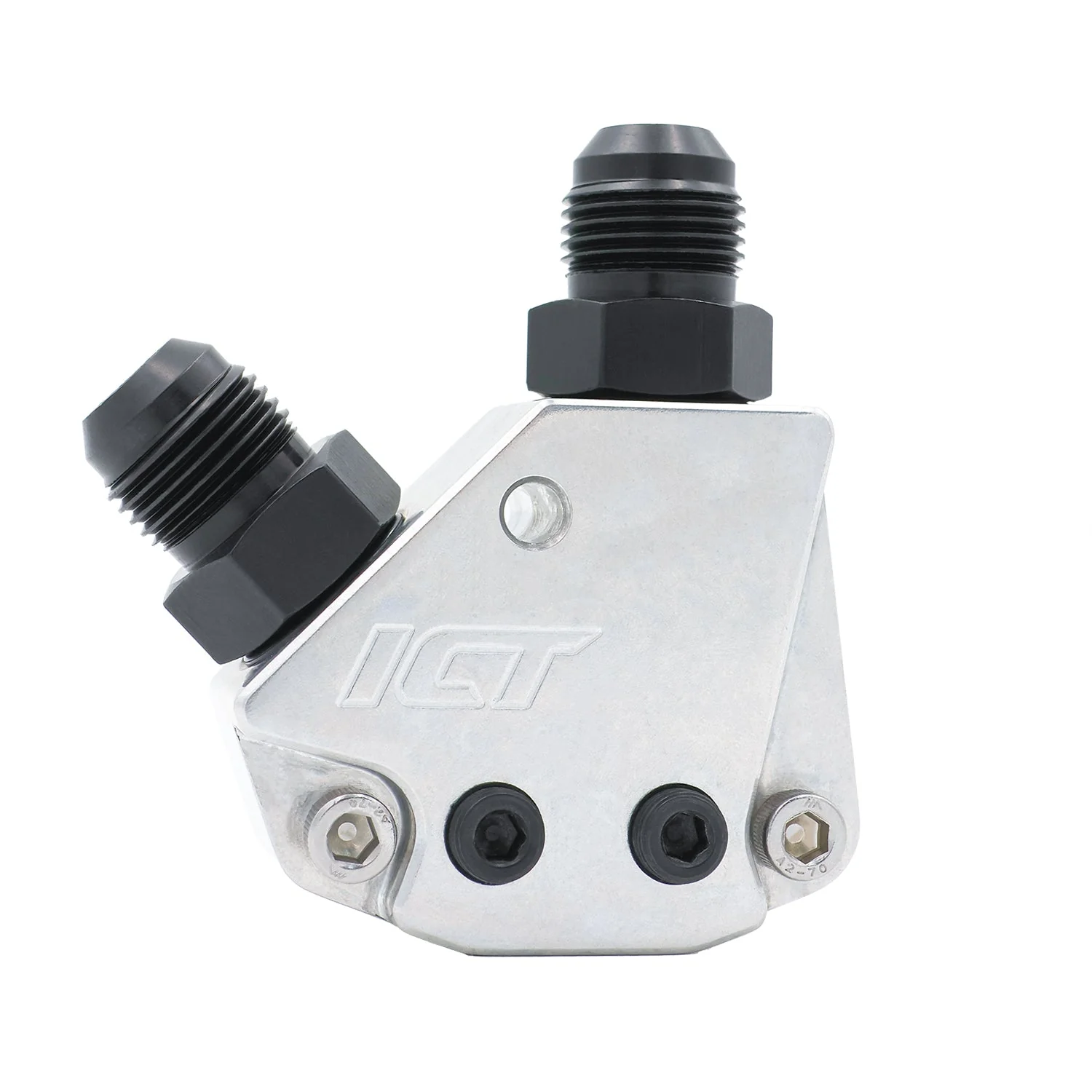

Build your own custom oil cooler system for your LS engine with this adapter.  The adapter has, dual -10AN ORB (oring) holes.  Call if you want smaller AN fitting sizes included, instead of the 10AN fittings.

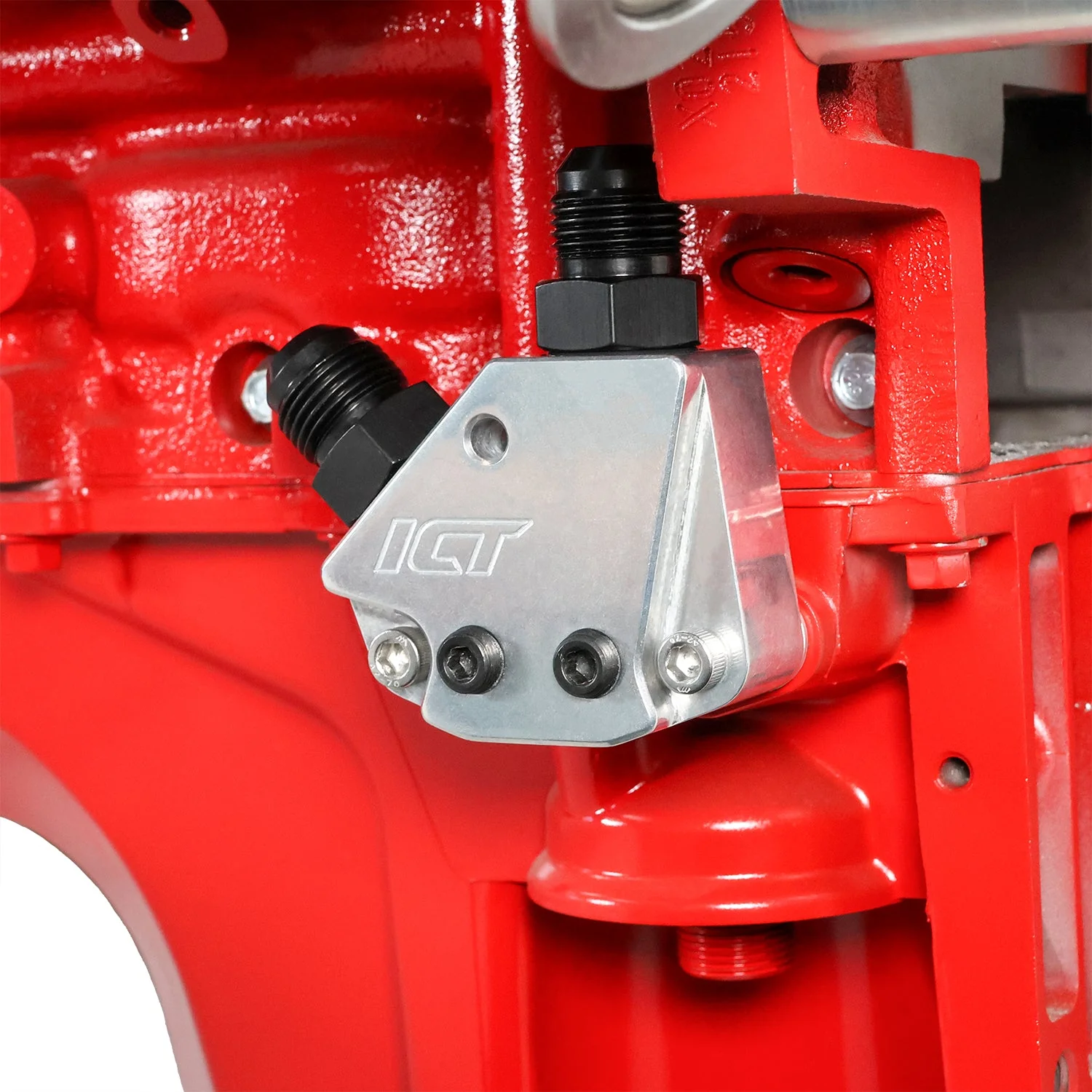

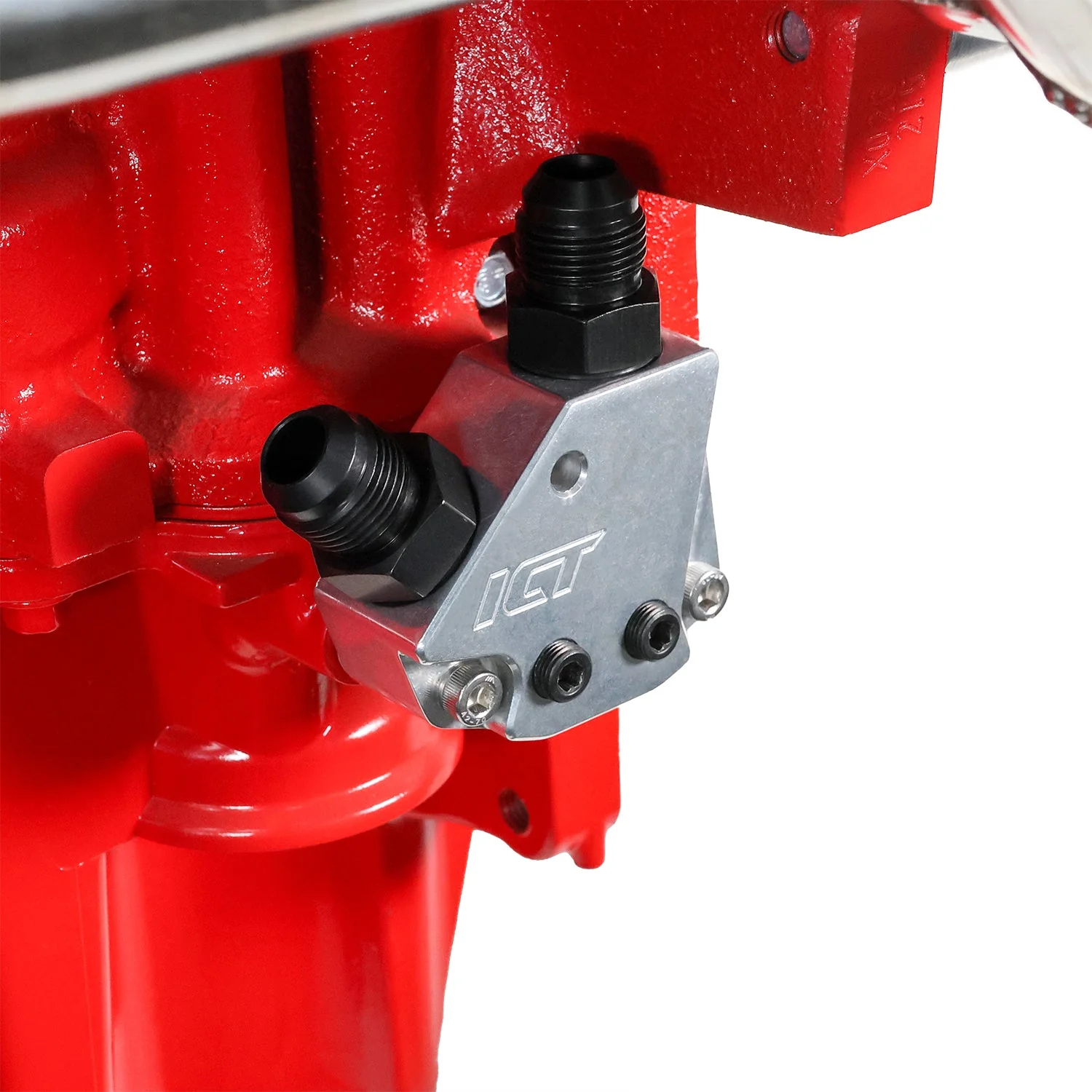

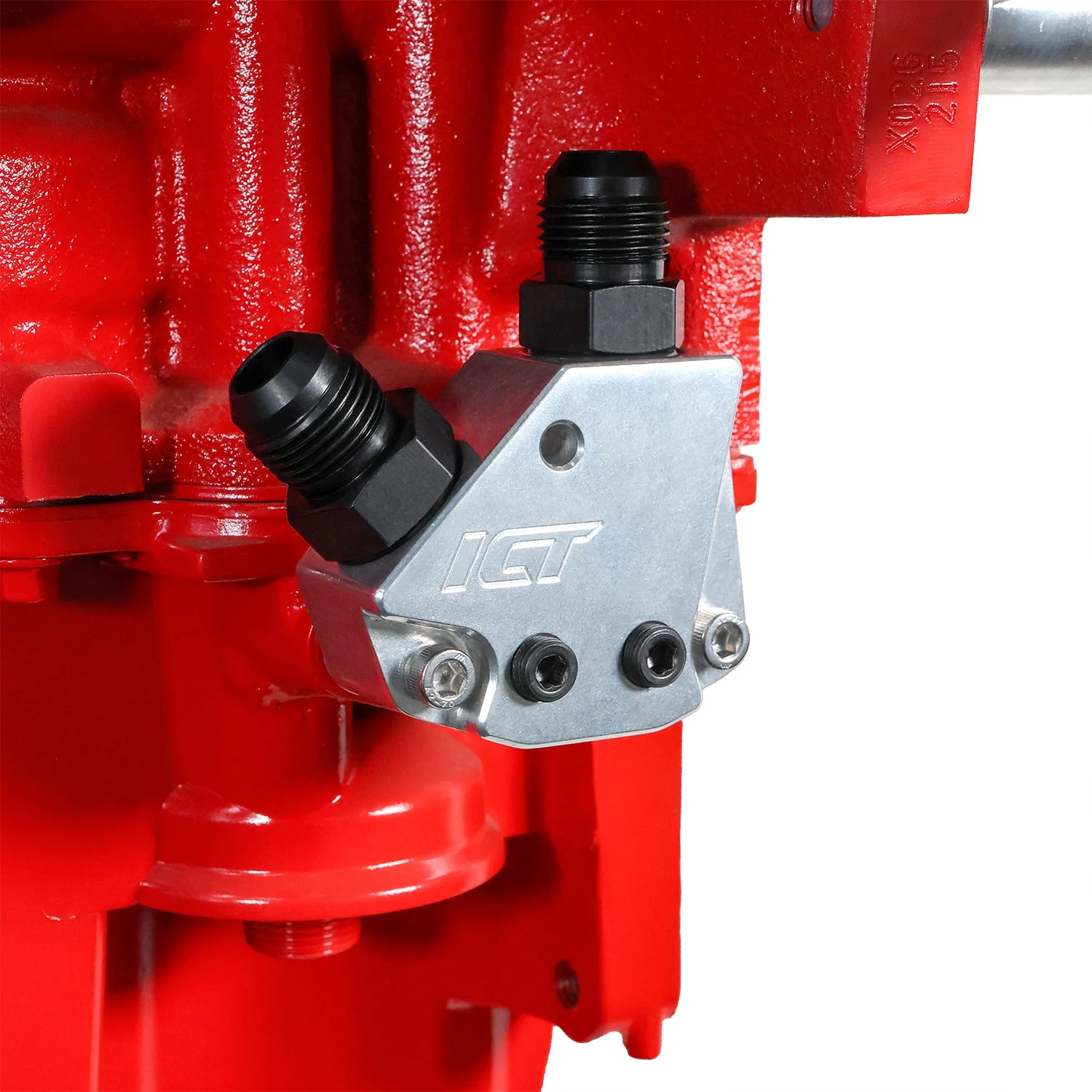

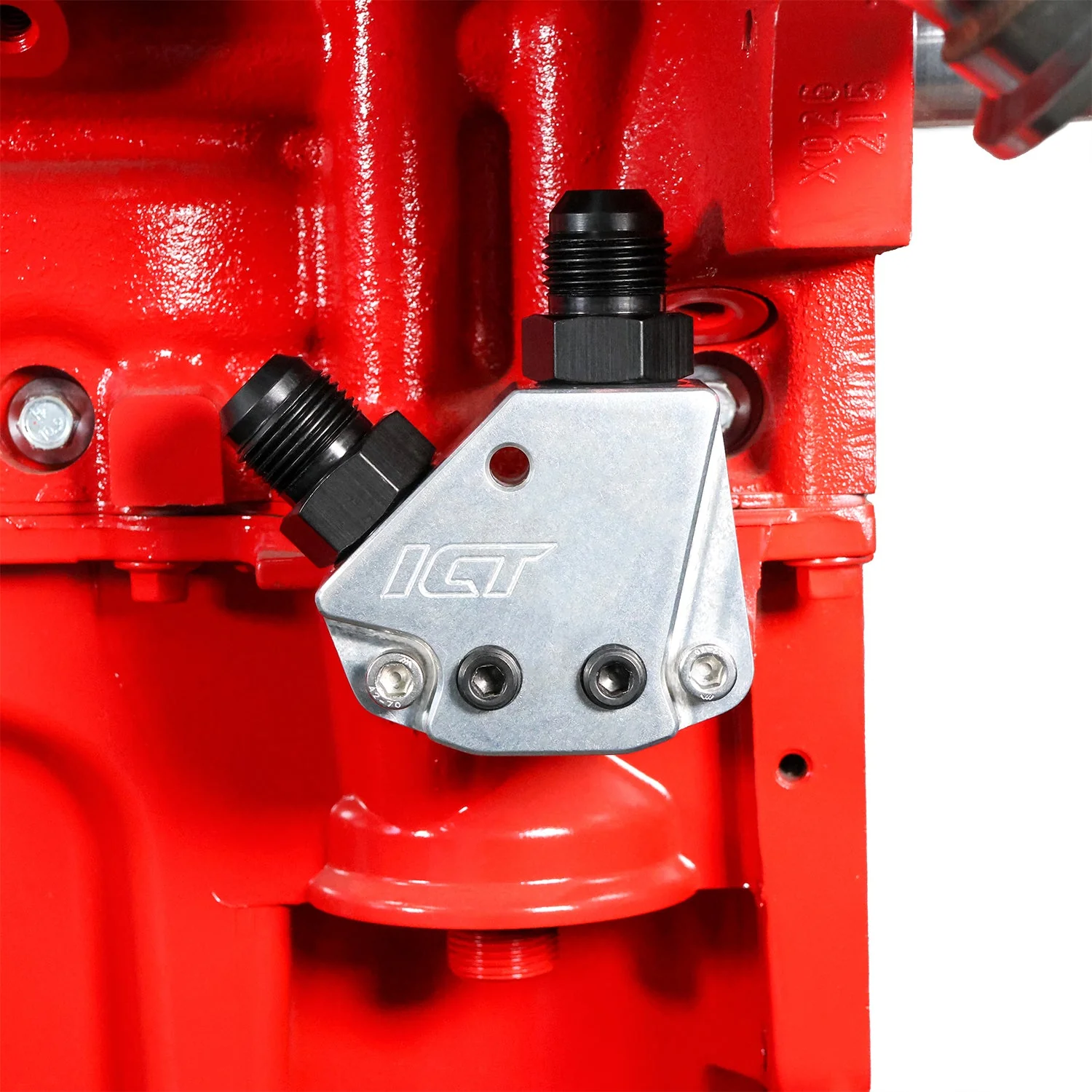

• Compatible with all wet sump LS series GM engines (EXCEPT GTO front sump oil pans and LS4 oil pans)
• Torque spec: 106 in lbs
• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum

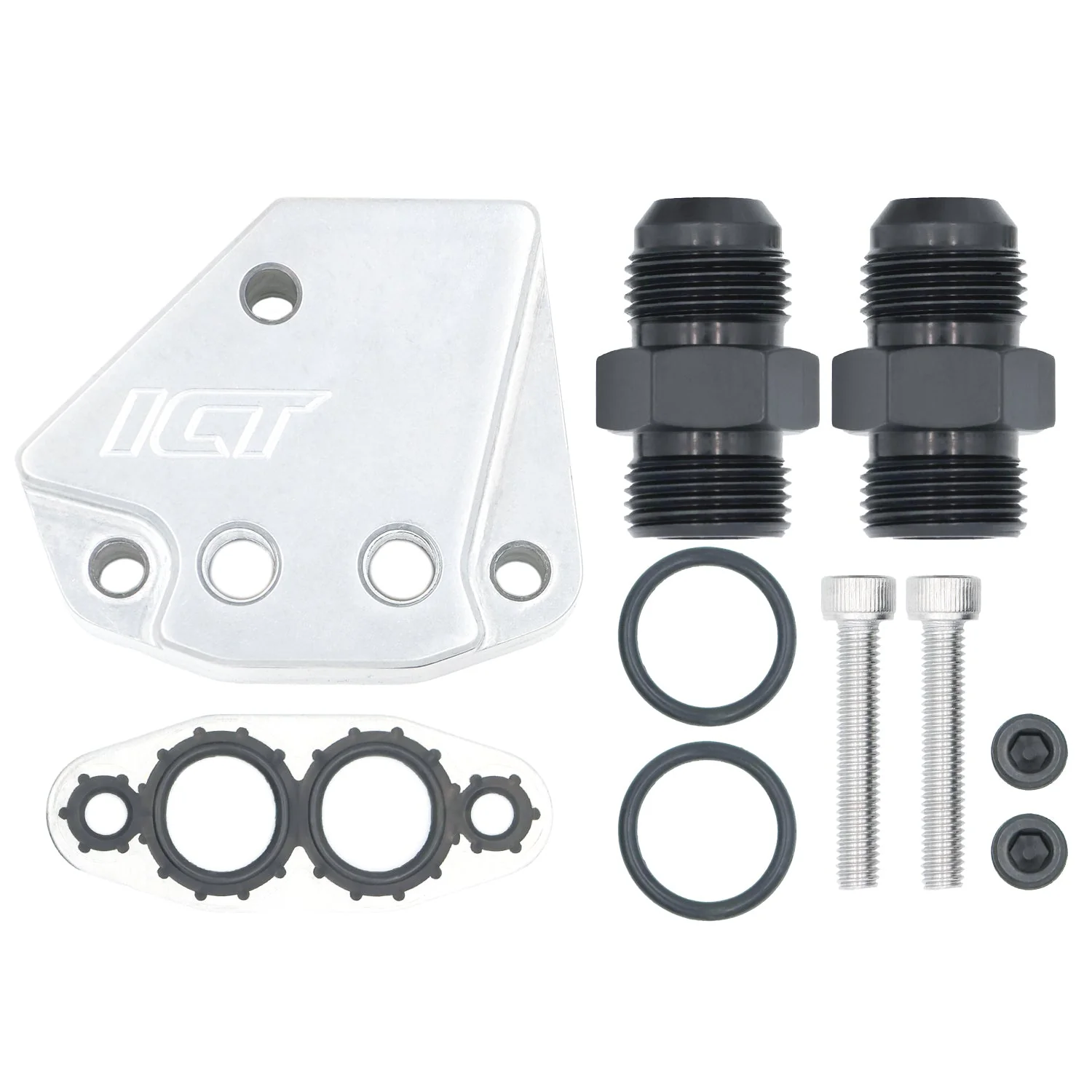

• Includes: adapter, 10AN/10ORB fittings x2, bolts, gasket, 1/8" NPT plugs x2

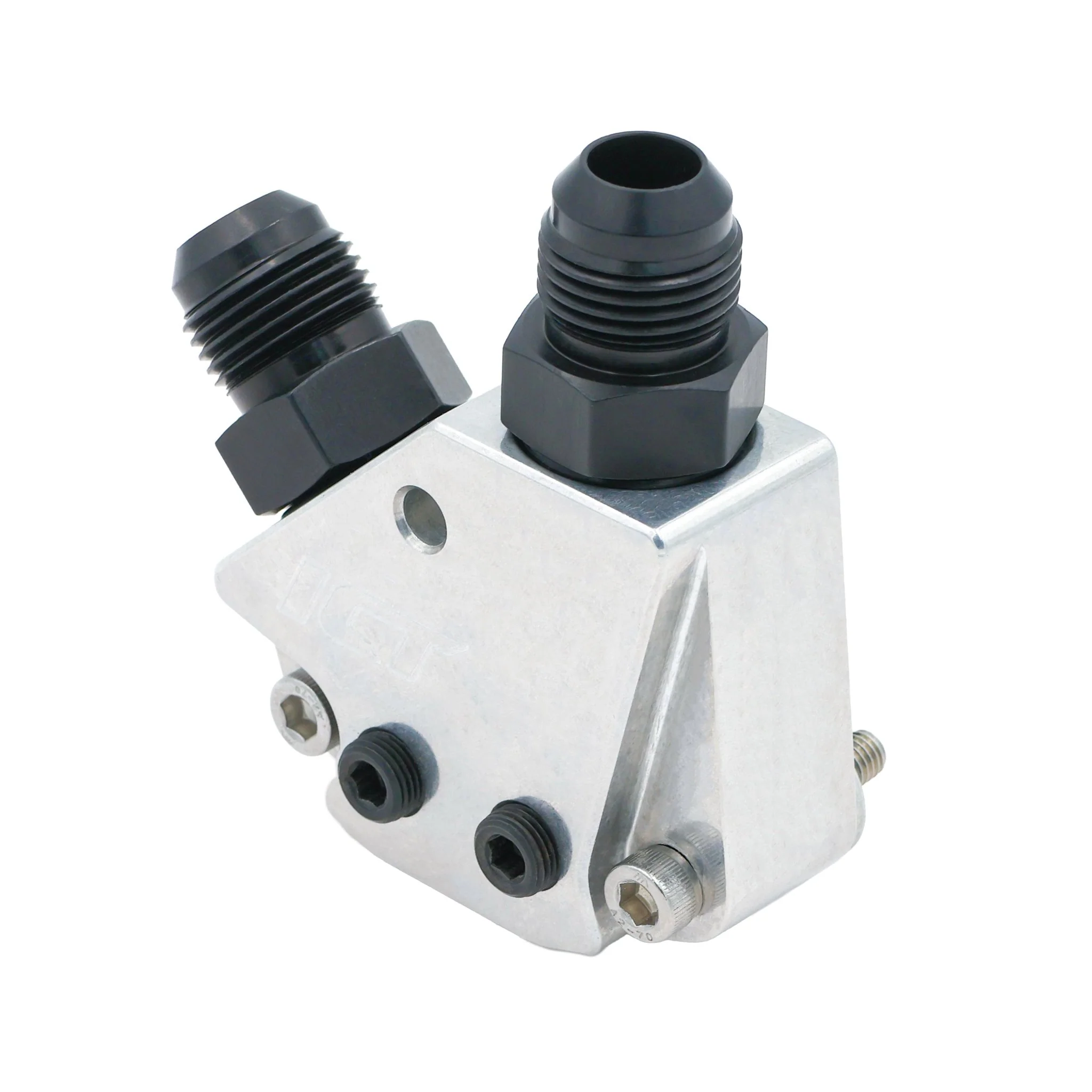

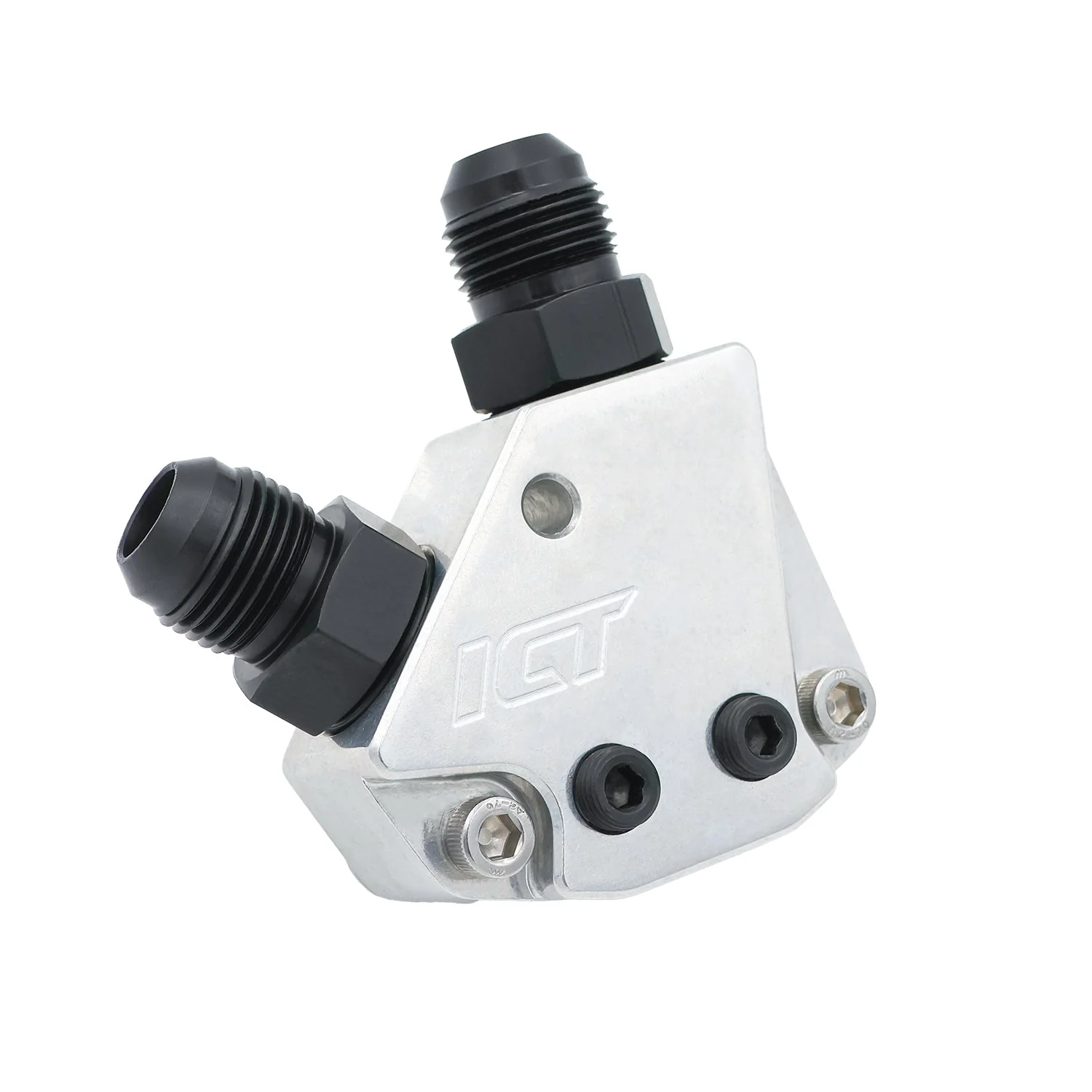

• Top fitting, that is pointing strait up is the "IN" fitting to return the oil
• Left angled fitting is the "OUT" feed to supply the oil cooler
