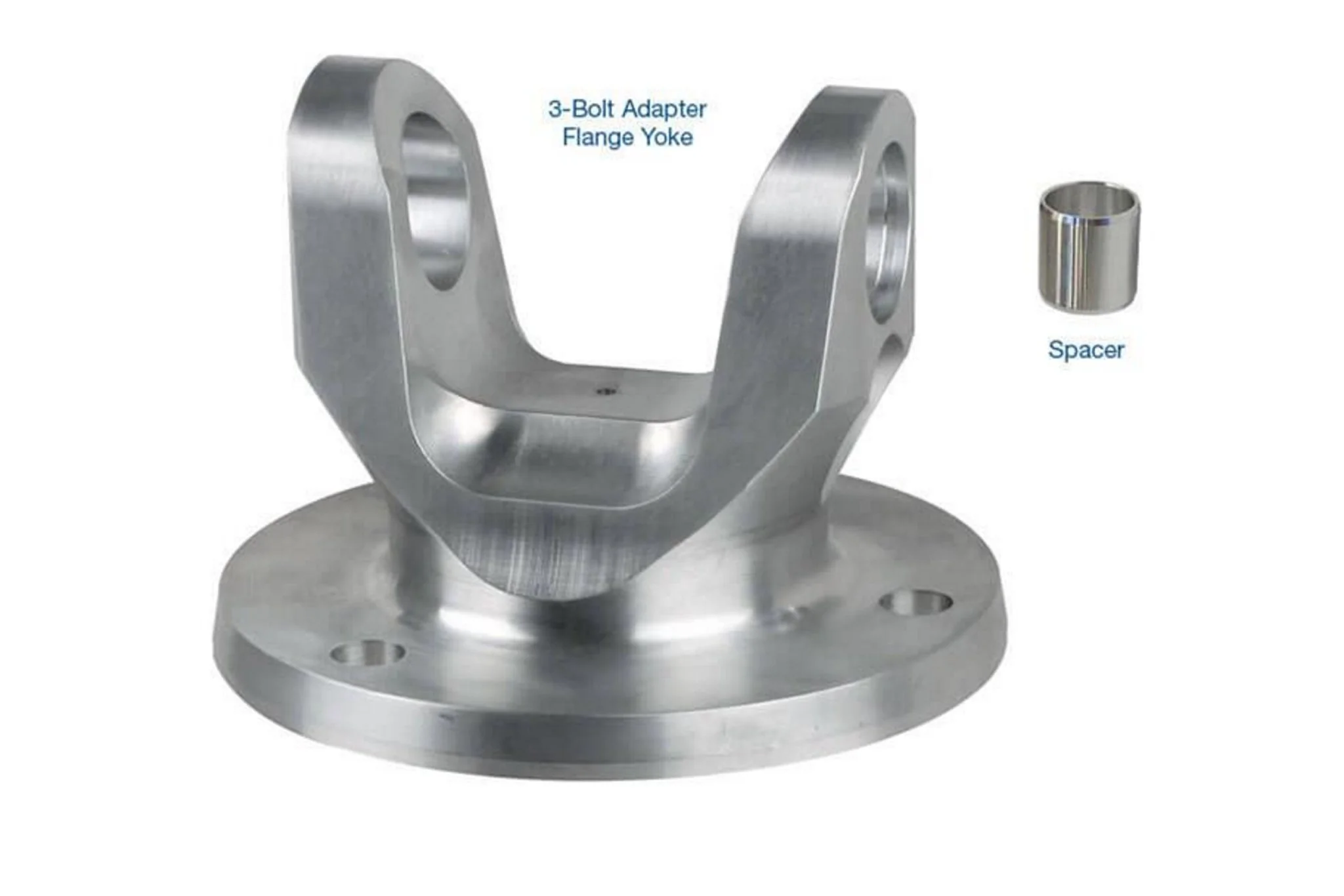

Sonnax Transmission Driveshaft Yoke for 6L80E 6L90E 8L90E 10L80E TR6060

Sonnax Transmission Driveshaft Yoke for 6L80E 6L90E 8L90E 10L80E TR6060

Sonnax Transmission Driveshaft Yoke for 6L80E 6L90E 8L90E 10L80E TR6060

Genuine Sonnax Adapter

  • Use this driveshaft yoke when swapping a modern driveline into your hotrod
  • Compatible with 6L80E 6L90E 8L90E 10L80E TR6060 transmissions

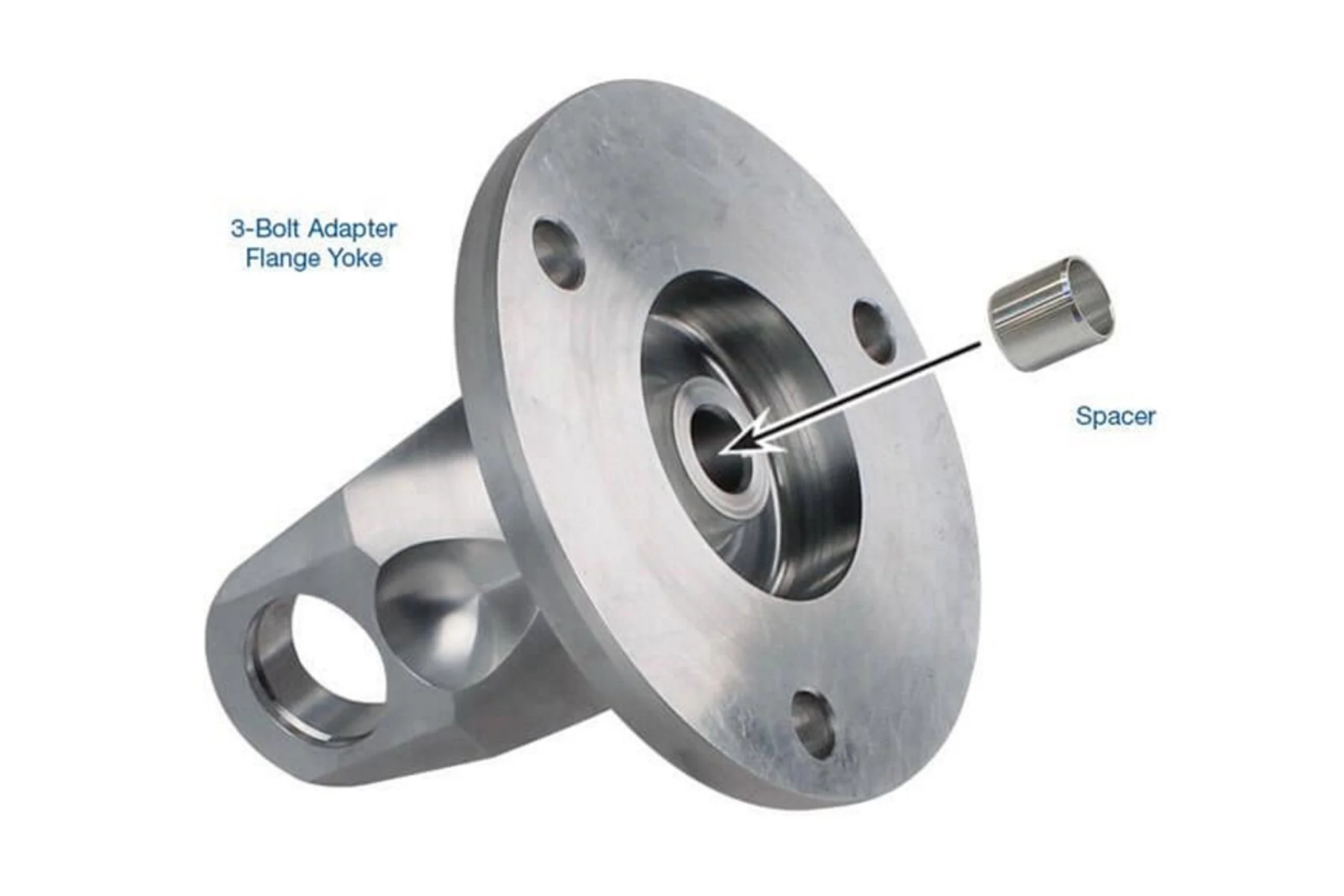

  • Insert the provided sleeve into the yoke if using 8L90E or 10L80E transmission



  • U-Joint Series: 1350
  • Pilot Type: F
  • Material: 6061-T6
  • Bolt Hole Dia.: 0.500"
  • Flange Face to Centerline: 3.000"
  • Weight: 1.980lbs
  • Flange Outer Dia.: 5.450"
  • Pilot Dia.: 0.631"
  • Bolt Count: 3
  • Bolt Circle Dia.: 110mm

$122.50

Original: $349.99

-65%
Sonnax Transmission Driveshaft Yoke for 6L80E 6L90E 8L90E 10L80E TR6060—

$349.99

$122.50

Product Information

Shipping & Returns

Description

Sonnax Transmission Driveshaft Yoke for 6L80E 6L90E 8L90E 10L80E TR6060

Genuine Sonnax Adapter

  • Use this driveshaft yoke when swapping a modern driveline into your hotrod
  • Compatible with 6L80E 6L90E 8L90E 10L80E TR6060 transmissions
  • Insert the provided sleeve into the yoke if using 8L90E or 10L80E transmission



  • U-Joint Series: 1350
  • Pilot Type: F
  • Material: 6061-T6
  • Bolt Hole Dia.: 0.500"
  • Flange Face to Centerline: 3.000"
  • Weight: 1.980lbs
  • Flange Outer Dia.: 5.450"
  • Pilot Dia.: 0.631"
  • Bolt Count: 3
  • Bolt Circle Dia.: 110mm
